Managing external dependencies is critical to ensuring that you can maintain computational reproducibility when you move your code to a new computer.

Dependencies

If you wish to make an apple pie from scratch, you must first invent the universe

– Carl Sagan

Dependencies are essentially prerequisites – the things you need to complete a task. For example, so far, we require both R and some of the packages in TidyVerse to run the code we’ve written. Dependencies – and tracking dependencies – are a significant issue in computationally reproducible research.

Part of good research data management when using a scripting language is finding ways of tracking and documenting dependencies. At it’s simplest, this means recording somewhere:

  • your operating system and version
  • your scripting language and version
  • your extra packages or libraries and their versions.

This information provides a framework for creating a computationally reproducible environment. But even this documented framework can be insufficient.

Environments

We can break addressing dependencies down into three distinct categories, levels, or environments that need to be addressed:

  • Keeping a stable R environment
  • Maintaining relationships to external programs
  • Keeping a stable operating system environment

Stable R Environment

We’ve talked about base R and about extending it with additional packages or libraries. It is very possible that an updated package or an updated version of R could break your code.

Base R packages are generally quite robust to backwards compatibility, but not always. A few examples:

  • When R 3.6 was released, an update to set.seed() that is used for reproducible results when random number generation is needed – i.e. you need to take a random sample from your dataset – broke several packages that relied on set.seed().
  • Similarly, when R 4.0 was released, updates to the matrix object had its class changed from array to c("matrix", "array") breaking any packages that relied on testing the class of this data structure using class().

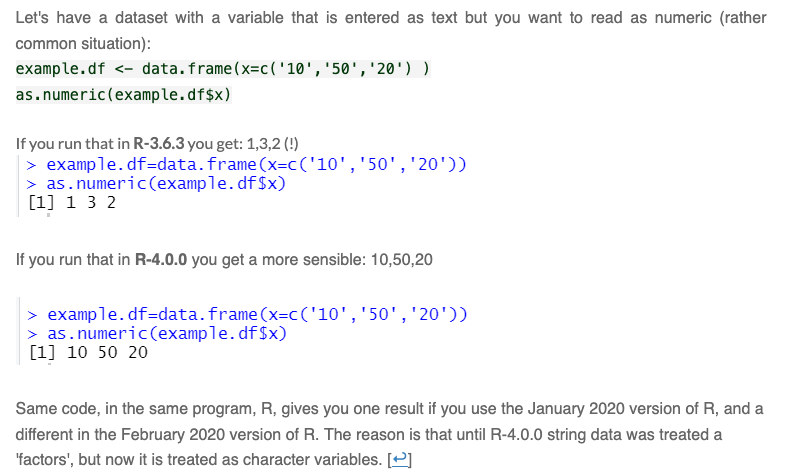

  • Finally, and this will be covered in more detail in the next lesson, but we will be working with factor data, so another, potentially more relatable example is the change made with the update to R 4.0 to not have characters translated to factors by default on import. This change risked breaking a lot of code. See this example from Uri Simonsohn with Data Colada:

This kind of break is much more common with external packages. Even when these packages have robust compatability standards, like with TidyVerse – you can read about their versoin support here. Later, we’ll be using the distinct() function from the dplyr package that is part of the TidyVerse. A 2016 update to the function changed its default behaviour effectively reducing the number of variables preserved by the function. Running a script written with the earlier version of distinct() could well break under a later version of the same function.

This kind of change that comes with an update is common enough to be a significant issue. The above Data Colada article provides a few more examples and links to others.

More importantly, this may not happen just on your machine. We want to make sure that your code is transferable to another person’s computer and will still run irrespective of how they have set up their R environment. We’ll explore one solution to this in R, but will first look at what happens to external R packages that can cause issues when code is moved to another computer.

External programs

Some R functions and packages are reliant on external programs. The knitr package that allows RMarkdown documents to be converted between document types (producing html, pdf, etc documents), and that we are using in this workshop, is a good example of this. Depending on what document type you’re exporting your .Rmd file to, knitr relies on external programs such as Pandoc and LaTeX. Considering this, it can be challenging to ensure that over time and across systems your .Rmd files will in fact output in the way that you expect. In this instance, this doesn’t nullify your code, just the conversion process from .Rmd to .html or .pdf.

Another example is being able to read Excel files into R. And this will lead us into the next consideration of keeping a stable system.

There is more than one package available in R to load in Excel files. One, xlsx requires that Java, another programming language, be installed on the user’s machine. Not everyone has Java, or the right version of Java, installed on their machines. Because of this, xlsx is very prone to breaking code across machines. A second is readxl from the TidyVerse. readxl uses two libraries whose licensing allows for redistribution with someone else’s code, so, readxl includes and installs these libraries when the readxl package is installed. It is much more robust when moved across computers and operating systems.

Maintaining relationships to external programs is very challenging. If using packages external to base R and the TidyVerse, you should read about these packages first and learn about their dependencies and use them only if they work with your needs as they relate to reproducibility, and, as necessary, maintain robust documentation about them.

Keeping a Stable System

We mentioned above that readxl uses two external libraries – this is very common in computer programs – if one person has solved a problem, i.e. how to read in proprietary Excel files into another application, and is willing to share that solution, no one else needs to solve that same problem.

However, for a variety of reasons, not all ‘shared’ libraries, as these are referred to, are bundled the way they are in readxl. In these instances, these libraries usually sit somewhere else that is globally accessible to any application on your computer. The only way to resolve this kind of dependency is to make a copy of your entire operating system that includes any external programs and your R environment.

This is far more than we cover here, but a popular option to facilitate creating a copy of your complete computing environment is using an application called Docker.

Overall Considerations

Consider what your specific needs are before venturing down these routes. A small project written in only base R likely needs only to record the version of R it is using. A project that uses only self-contained external R packages only needs renv – see below. A project that has external program dependencies may suffice to simply document what these dependencies are and what needs to be installed to resolve them. It is only in large, complex projects, and one’s where a risk assessment determines that computational reproducibility is critical, that you would consider resorting to a solution like Docker.

A Reproducible R Environment

How to resolve the R dependency problem? A popular option is with the renv package.

Before we begin, it’s important to draw a distinction here between a package and a library in R. A package is a set of functions and data. We’ve seen many of the functions included in the TidyVerse set of packages. A library is a place where these packages are stored on your computer. You can see where your packages are stored with .libPaths().

.libPaths()
## [1] "/Library/Frameworks/R.framework/Versions/4.3-arm64/Resources/library"

Note that, by default, these are not stored with your R project. So when you move your project folder, you don’t also move your additional packages.

A simple way to handle this is to use the renv package, which installs your packages in your project folder as well and maintains detailed information about them so that should they need to be re-installed they can be and with the exact same version. Thus, you end up with a stable, reproducible R environment.

renv in Action

First we install, load, and initialize renv – this only needs to be done once.

install.packages("renv")
renv::init()

You’ll notice that we’re using a different way of calling the init() function here, first noting the package that it’s in renv followed by two colons ::. Similarly to how in day 2 we loaded all of TidyVerse with library(TidyVerse), but later today we’ll only load one package from the TidyVerse, dplyr, to trim down how much we’re loading into memory, we can also load only specific functions from a package – we don’t call library(), we just reference the package, and then call the function of interest.

The init() function does a couple of things. It:

  • populates your .Rprofile with a line to be read every time you launch your project to activate() renv
  • creates a renv/ directory where your local libraries are installed.
  • creates a renv.lock file that maintains metadata about the libraries you’re using in the project.

In fact, if we run .libPaths() again, we’ll see the output has changed and that there are two library paths now.

.libPaths()
## [1] "/Users/vdunbar/Library/CloudStorage/OneDrive-UBC/_tmp/bootcamp_website/rdm-jumpstart/renv/library/R-4.3/aarch64-apple-darwin20"
## [2] "/Users/vdunbar/Library/Caches/org.R-project.R/R/renv/sandbox/R-4.3/aarch64-apple-darwin20/ac5c2659"

Once intialized, renv is ready to start installing packages locally.

If you already have saved .R or .Rmd files, init() will attempt to locate the packages your’re using and install them locally.

If you’re initializing renv before saving any files, you’ll need to manually install the packages you’ll be using going forward, even if you’ve previously installed these by this stage, because renv is looking in our project folder for packages.

renv has an install function that is more verbose than install.packages() from base R.

renv::install("TidyVerse")

Installing a package doesn’t add the details of this package to your renv.lock file; this only happens when you actively call a package in an .R or .Rmd file and instruct renv to make a record of this.

First you load the newly installed package.

library(TidyVerse)

Then you take a snapshot(), which tells renv to document the packages you’ve used in your scripts. In our case, we only need to do this once, since we’re only using packages that are contained within TidyVerse.

renv::snapshot()

The renv.lock file

This is what the renv.lock file looks like on the inside:

## {
##   "R": {
##     "Version": "4.3.1",
##     "Repositories": [
##       {
##         "Name": "CRAN",
##         "URL": "https://cloud.r-project.org"
##       }
##     ]
##   },
##   "Packages": {
##     "DBI": {
##       "Package": "DBI",
##       "Version": "1.2.3",
##       "Source": "Repository",
##       "Title": "R Database Interface",
##       "Date": "2024-06-02",
##       "Authors@R": "c( person(\"R Special Interest Group on Databases (R-SIG-DB)\", role = \"aut\"), person(\"Hadley\", \"Wickham\", role = \"aut\"), person(\"Kirill\", \"Müller\", , \"kirill@cynkra.com\", role = c(\"aut\", \"cre\"), comment = c(ORCID = \"0000-0002-1416-3412\")), person(\"R Consortium\", role = \"fnd\") )",
##       "Description": "A database interface definition for communication between R and relational database management systems.  All classes in this package are virtual and need to be extended by the various R/DBMS implementations.",
##       "License": "LGPL (>= 2.1)",

Rebuilding Your R Environment

Packages can take up a lot of space, so generally, you don’t share your packages or library folder with others when you share your R project. Instead, you just share a few of the renv generated files, including the:

  • renv.lock file – the metadata about the packages used
  • .Rprofile file – launches renv/activate.R at startup
  • renv/activate.R file – checks the setup on startup and will install renv if it’s not installed
  • renv/settings.json file – settings for renv.

This set up is intended for using a version control system like Git. We’re going to simplify things for ourselves here by only using the renv.lock file when sharing. So, you can ignore the hidden file .Rprofile and the renv/ directory.

This does mean that any collaborators will need to install renv first on the their machines – if we included the other files, on project start-up renv would be installed if it wasn’t already. Then, they run renv::activate(), which gets renv up and running in the project, followed by renv::restore(), which rebuilds your R environment on their machine.

At the end of today, when we upload our data and .Rmd files to OSF, we will now also include the renv.lock file. We should also update our readme with the renv setup instructions.

Read more about the renv package at https://rstudio.github.io/renv/articles/renv.html
